320*160mm P2.5mm Indoor LED Display Module

An indoor P2.5 LED display module features a 2.5mm pixel pitch, offering an excellent balance between high-definition visual clarity and cost-efficiency. It performs optimally in indoor environments where the minimum viewing distance is 2.5 meters (approx. 8 feet)

Send email to us

Product Detail

Product Tags

Key features

• Resolution: 4,096dots with 64×64 grid matrix. 8,192dots with 128×64 grid matrix.

• 2.5mm pixel pitch for better visual performance with good Clarity

• Dimensions: 320mm x 160mm / 12.6” x 6.3” or 160mm x 160mm / 6.3” x 6.3”

• Best for indoor, 160-degree visibility

• 5V regulated power input

• 1R1G1B full-color LED screen panel

• Constant current 1/32 scan

• 600-1,000 nits brightness.

• Highly stable driver ICs for better color uniformity and vibrant images

• Designed with the latest SMD 1R1G1B encapsulation, offering excellent full color present.

• High contrast ratio of 5000:1 to deliver vibrant colors.

• High refresh rate with over 1920hz to 3840Hz to allow flicker-free

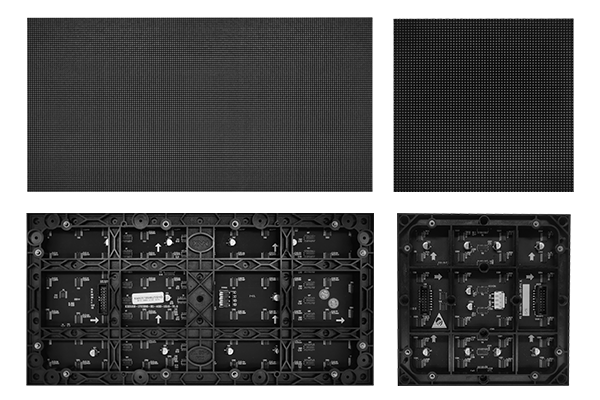

Two Size Available

Two different sizes of 160*160mm and 320*160mm for choose.

320×160mm Series

> Size: 320×160mm
> Resolution: 128×64 dots
> Driver mode: 1/20 scan rate

The 320mm x 160 mm series is mounted with 128 rows and 64 columns of LEDs, which means there are up to 8,192 LEDs on each panel. It has the same pixel density as the 160mm*160mm series P2.5 module but with twice the LEDs and is more expensive. This standard size allows the P2.5 module to have flexible compatibility with many other 320×160mm series LED modules. If you are looking for the same size as well as a wider pitch for a longer viewing distance, check out the P4 or P5.

160×160mm Series

> Size: 160×160mm
> Resolution: 64×64 dots
> Driver mode: 1/32 scan rate

160mm×160mm series is designed with a 1:1 ratio measurement, delivering up to 4,096 full-color bright LEDs distributed in a panel at 64 64-row and 64 columns matrix, bringing an extremely high contrast ratio and ultra-high color consistency. This is very similar to our 3mm pitch 192 x 192 mm indoor LED panel, which is also designed in a 1:1 ratio and offers 64 x 64 LEDs but with a wider distance between the LEDs at 3mm

Specification

Product Model	P2.5mm-Indoor
Pixel Pitch	2.5mm
Panel Dimension	320(W)x160mm(H)
Pixel Resolution	128×64 dot
Pixel Configuration	1R1G1B
LED specification	SMD 3in1
Scan Rate	Constant current 1/32
Hor. viewing angle	160°
Vert. viewing angle	160°
Best View Distance	3m – 30m
Grey Level	14 bits
Brightness	600 – 1000 cd/㎡
Brightness Adjustment	100-grade auto/manual-adjustment
Brightness Uniformity	>99%
Input Voltage (AC)	DC5V
Avg Power Consumption	250 W/m²
Max Power Consumption	580 W/m²
Operation Power Voltage	100-240V / 50-60Hz
Control System	DVI card + Full color control card
Control Mode	Synchronous & asynchronous available
Support Input	VGA, Video, AVI, MOV, MPG, DAT, VOB etc.
Communication Options	Wire Ethernet, Fiber Ethernet,RF wireless, GPRS
Frame Frequency	>60 Hz
Refresh Frequency	>600 Hz(adjustable)
Color Temperature	3500-9500 adjustable
Control Distance	Ethernet cable 100m, optical fiber 5km
Lifetime	>=100000 hours
Blind Spot Rate	<0.00001
Working Temp	(-20)-(+60) Celsius degree
Working Humidity	10%-90%
Waterproof Rating (Front/Rear)	IP65/IP54
Package Type	Carton/Wooden case/Flight case
Warranty	2 years

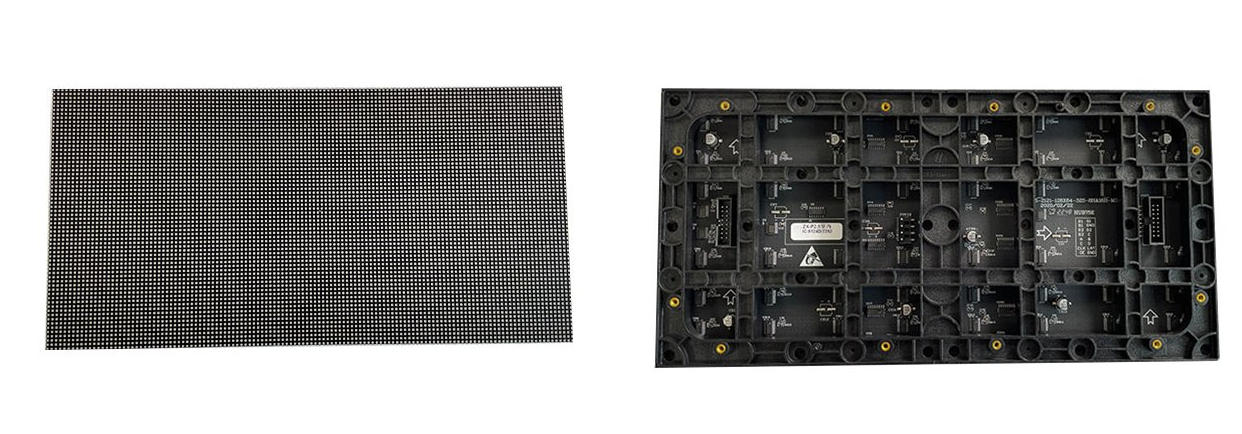

P2.5 indoor led module front and back side

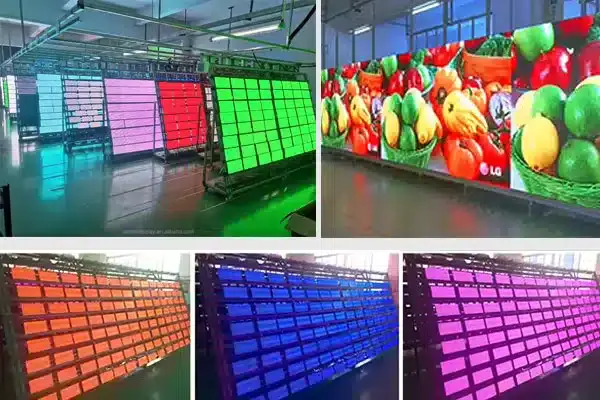

LED Display Module Manufacturing and Aging Test

To ensure long-term performance, our LED modules undergo intensive aging tests that simulate years of real-world operation. We subject the modules to extreme conditions — high temperature, high humidity, and continuous high-pressure operation — to rigorously evaluate their stability, reliability, and lifespan.

Critical Test Parameters:

Brightness Stability - Verifies consistent light output without noticeable degradation

Color Preservation - Ensures colors remain vibrant and true without changing

Light Decay - Measured and validated against strict performance benchmarks

Power Supply Stability - Confirms reliable operation at specified voltage/current levels

These extensive tests allow us to identify and resolve potential issues early, ensuring that each module delivers exceptional quality and meets customer expectations.

At Xiaosan, we combine advanced manufacturing equipment with experienced technicians who carefully monitor every production phase — from component selection to final assembly — ensuring superior product quality at every step.

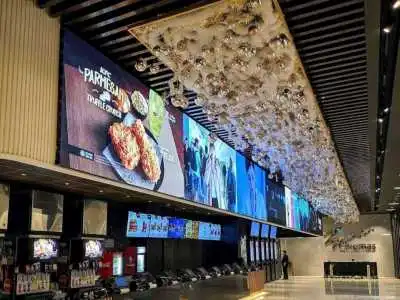

Applications of Indoor LED Screen Display

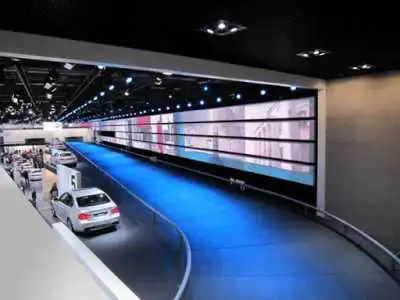

Sales Gallery

P2.5 Indoor LED Screen Display can be used at sales gallery to display your product information, introductory video and even as a backdrop for your events.

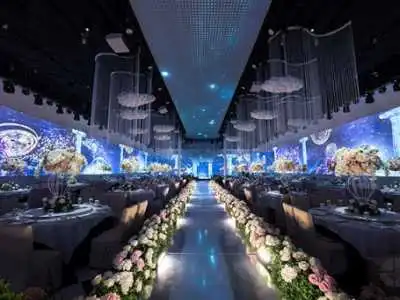

Hotel Ballroom

Use the P2.5 Indoor LED Screen Display as the hotel ballroom stage backdrop or mounted on the wall to display dynamic videos and images.

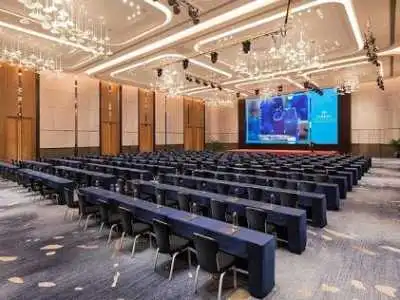

Exhibition Center

P2.5 Indoor LED Screen Display can be installed at hall / exhibition center to project information or presentation slides to the participants.

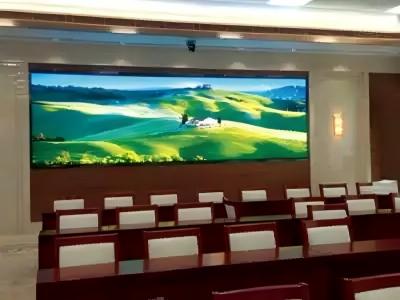

Meeting Room

Use P2.5 Indoor LED Screen Display instead of projector screen for bright and vivid visual, without turning off the room lights and rolling down the curtains.
