P2.5mm 160*160mm Indoor LED Display Module

The P2.5mm 160×160mm indoor LED display module offers several specific advantages, especially compared to the more common 320×160mm rectangular modules:


Product Detail

Product Tags

1. High Design Flexibility

• Perfect Square Geometry: The 1:1 aspect ratio makes it incredibly easy to design and assemble perfectly square screens without complex mathematical scaling.

• Creative and Irregular Shapes: It is the ideal building block for creative LED installations, such as LED cubes, column wraps, L-shaped corners, and staggered creative layouts.

2. High Resolution and Pixel Density

• Sharp Visuals: With a 2.5mm pixel pitch, it delivers 160,000 pixels per square meter, ensuring clear images and readable text from close viewing distances (2.5 meters or closer).

• Grid Resolution: Each 160×160mm block contains a dense 64 × 64 pixel matrix, providing high structural density for fine-detailed content.

3. Precision Engineering

• Seamless Splicing: The small modular footprint allows for tighter mechanical tolerances, resulting in a perfectly flat, seamless screen surface with no visible gaps between panels.

• Easy Maintenance: If a pixel fails, replacing a tiny 160mm module is much cheaper and faster than replacing a larger standard panel

Key features

• Resolution: 4,096dots with 64×64 grid matrix. 8,192dots with 128×64 grid matrix.

• 2.5mm pixel pitch for better visual performance with good Clarity

• Dimensions: 320mm x 160mm / 12.6” x 6.3” or 160mm x 160mm / 6.3” x 6.3”

• Best for indoor, 160-degree visibility

• 5V regulated power input

• 1R1G1B full-color LED screen panel

• Constant current 1/32 scan

• 600-1,000 nits brightness.

• Highly stable driver ICs for better color uniformity and vibrant images

• Designed with the latest SMD 1R1G1B encapsulation, offering excellent full color present.

• High contrast ratio of 5000:1 to deliver vibrant colors.

• High refresh rate with over 1920hz to 3840Hz to allow flicker-free

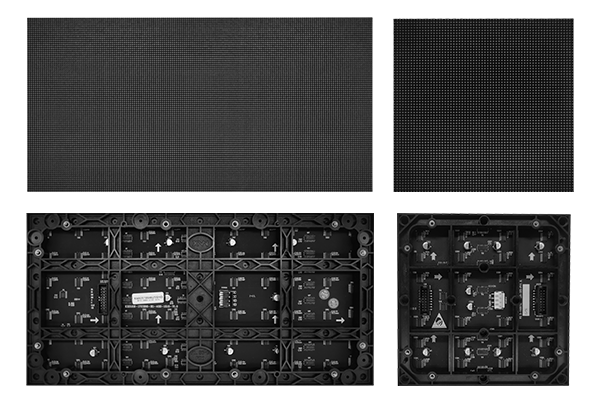

Two Size Available

Two different sizes of 160*160mm and 320*160mm for choose.

two size available

320×160mm Series

> Size: 320×160mm
> Resolution: 128×64 dots
> Driver mode: 1/20 scan rate

The 320mm x 160 mm series is mounted with 128 rows and 64 columns of LEDs, which means there are up to 8,192 LEDs on each panel. It has the same pixel density as the 160mm*160mm series P2.5 module but with twice the LEDs and is more expensive. This standard size allows the P2.5 module to have flexible compatibility with many other 320×160mm series LED modules. If you are looking for the same size as well as a wider pitch for a longer viewing distance, check out the P4 or P5.

160×160mm Series

> Size: 160×160mm
> Resolution: 64×64 dots
> Driver mode: 1/32 scan rate

160mm×160mm series is designed with a 1:1 ratio measurement, delivering up to 4,096 full-color bright LEDs distributed in a panel at 64 64-row and 64 columns matrix, bringing an extremely high contrast ratio and ultra-high color consistency. This is very similar to our 3mm pitch 192 x 192 mm indoor LED panel, which is also designed in a 1:1 ratio and offers 64 x 64 LEDs but with a wider distance between the LEDs at 3mm

Specification

Model Number P2.5-160x160-32S
Module size 160mm*160mm
Module thickness 15mm, 27mm
Pixel pitch 2,5mm
Pixels Density 160000dot/m2
Pixel configuration 1R1G1B
Package mode SMD 3IN1 -1515
Pixel resolution 64dots(W)*64 dots(H)
Max Power 25W
Weight 0.232kg
Drive type Constant drive
Scan mode 1/32scan
Port type HUB75E
 Brightness of white balance 800cd/m2
Best viewing distance 3M～20M
Best viewing angle 160°(W) 120°(H)
Temperature (Storage) 35℃～+85℃, (Working) -20℃～+50℃
Relative humidity 10%-95%
Working voltage DC 5V
Average Power consumption <320W/㎡
Max. Power consumption <780W/㎡
Current <18mA (single LED)
Driving device Constant drive IC
Refresh frequency >1920HZ
 Grey scale/colors 65536gray level/16.7M colors
MTBF >9000hours
Power switch Automatic switch

LED Display Module Manufacturing and Aging Test

To ensure long-term performance, our LED modules undergo intensive aging tests that simulate years of real-world operation. We subject the modules to extreme conditions — high temperature, high humidity, and continuous high-pressure operation — to rigorously evaluate their stability, reliability, and lifespan.

Critical Test Parameters:

Brightness Stability - Verifies consistent light output without noticeable degradation

Color Preservation - Ensures colors remain vibrant and true without changing

Light Decay - Measured and validated against strict performance benchmarks

Power Supply Stability - Confirms reliable operation at specified voltage/current levels

These extensive tests allow us to identify and resolve potential issues early, ensuring that each module delivers exceptional quality and meets customer expectations.

At Xiaosan, we combine advanced manufacturing equipment with experienced technicians who carefully monitor every production phase — from component selection to final assembly — ensuring superior product quality at every step.

module aging test
Accessories

Applications of Indoor LED Screen Display

sales gallery

Sales Gallery

P2.5 Indoor LED Screen Display can be used at sales gallery to display your product information, introductory video and even as a backdrop for your events.

hotel ballroom

Hotel Ballroom

Use the P2.5 Indoor LED Screen Display as the hotel ballroom stage backdrop or mounted on the wall to display dynamic videos and images.

exibition center

Exhibition Center

P2.5 Indoor LED Screen Display can be installed at hall / exhibition center to project information or presentation slides to the participants.

meeting room

Meeting Room

Use P2.5 Indoor LED Screen Display instead of projector screen for bright and vivid visual, without turning off the room lights and rolling down the curtains.

advertising

Advertising

P2.5 Indoor LED Screen Display is modular, meaning you have full flexibility when designing one for advertising purpose, for full creativity.

building lobby

Building Lobby

Modernize your building lobby with our Indoor series LED Screen Display. It can be mounted on the wall, column and even ceiling.

broadcast TV

Broadcast TV

With P2.5 Indoor LED Screen Display, broadcast or TV station background can be changed in real time for information or decorative purposes.

retail

Retail

Reduce printing works with our Indoor series LED Screen Display, where your promotions can be updated within a few mouse clicks.

How to Choose Between 160*160mm and 320*160mm?

Choosing between a 160×160mm (square) or 320×160mm (rectangular) module (P2.5mm) primarily depends on your screen shape, budget, and installation space. You can choose based on the following three core dimensions:



1. Determine your screen shape and creative needs.

Choose 160×160mm: If you are making an LED cube screen, cylindrical screen, right-angle corner screen, square screen, or if the installation space is very tight and the length and width dimensions must be accurate to multiples of 16 cm.

Choose 320×160mm: If you are making a standard 16:9 or 4:3 large screen (such as a conference room or stage backdrop). This rectangular module is an industry standard and very easy to assemble into a standard display ratio.



2. Consider your budget and installation costs.

Economical first choice: 320×160mm. Because of the larger area of ​​each module, the number of modules required to splice together the same area is reduced by half. This means fewer ribbon cables and power cables need to be purchased, and installation labor costs are significantly reduced.

Higher cost: 160×160mm. The number of modules doubles for the same area, resulting in a larger wiring workload, more complex control card load calculations, and higher overall hardware and labor costs.



3. Considering the convenience of later maintenance

Local fine-tuning: 160×160mm. If a defective pixel occurs in a certain area, the cost and impact of replacing a single module are smaller due to the smaller module area.

Quick overhaul: 320×160mm. Larger areas are easier to control for flatness, and the area that can be replaced at one time during maintenance is larger, making it suitable for commercial large screens that require efficient maintenance.



Please tell me the specific length and width dimensions of the large screen you plan to install, or your installation scenario (such as pillar cladding, reception area, conference room), and I will recommend the most suitable specifications for you.
