Indoor Fixed Installation X3-PRO Series Ultra Thin LED Display Screen

Extending the appearance of the MI-PRO series boxes with small spacing, a semi-circular design element symbolizing infinite possibilities is used as the exterior design element. When N boxes are pieced together to form countless waves, it shows a soft and graceful state. This not only showcases a stable and smooth aesthetic, but also gives the product a sense of technology and futurism.

Send email to us

Product Detail

Product Tags

Key features

Cabinet size

t3-pro-series-english-1_03x

P1.25/P1.56/P1.95/P2.5/P2.604/P2.976/P3.91

►Front maintenance, simple structure and easy installation；

►Integrated high-precision die cast aluminum casing for quick installation;

►Stylish and simple appearance, ultra-thin and beautiful；

►Flexible splicing, supporting shapes such as right angles and columns；

►Vivian picture quality, high brightness and contrast, good color saturation.

Cabinet weight

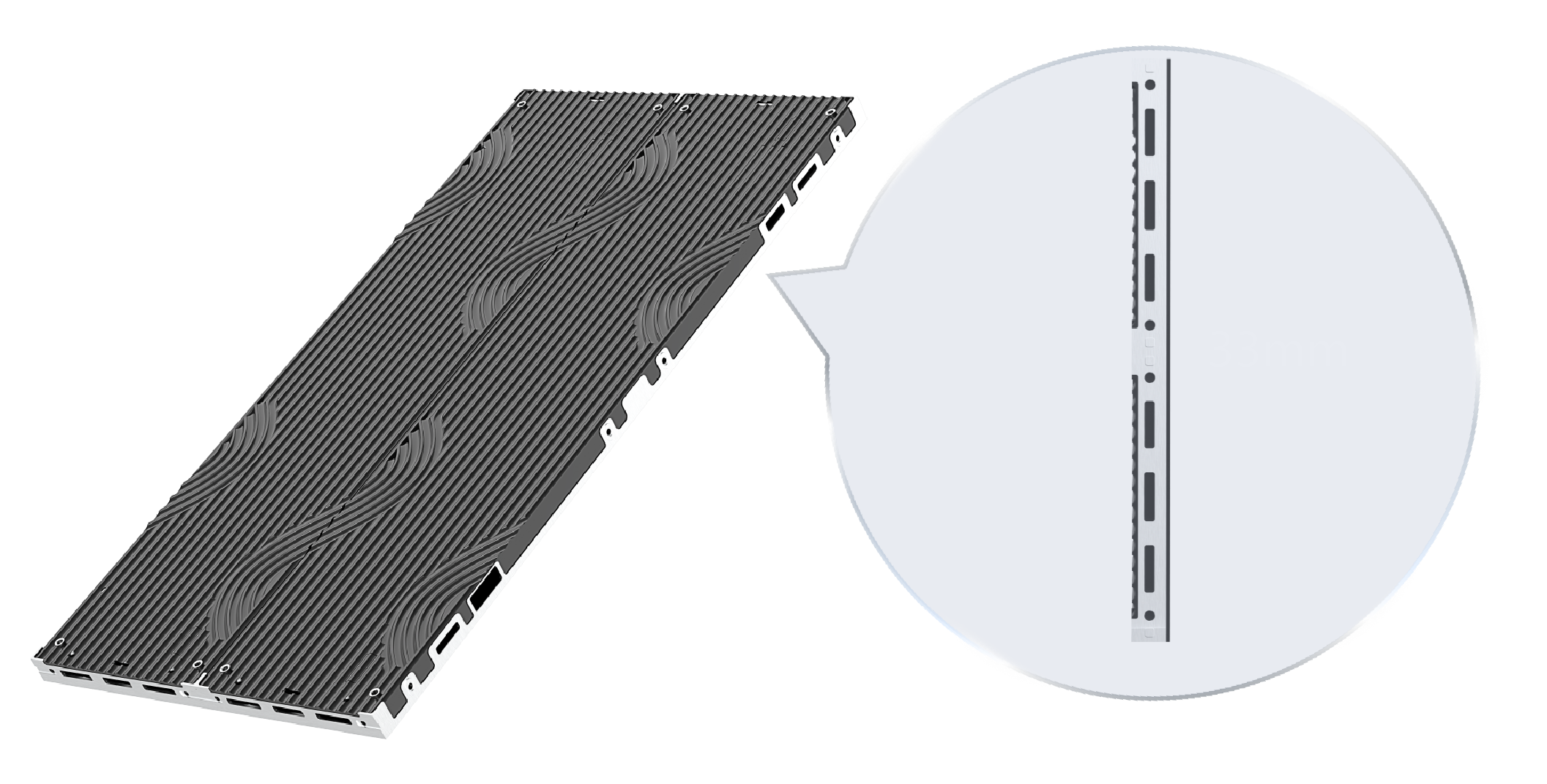

Die cast aluminum integrated box body, high precision, with a total thickness of only 33mm, The weights of the four types of boxes, 1000X500mm/1000X250mm/750X250mm/500X250mm, are as follows:9.8kg/5.0kg/4.0kg/3.0kg

Front maintenance

Support pre installation and maintenance, with zero space constraints

High brightness and high gray

High grayscale and high refresh rate, no scanning lines in photography, resulting in a more realistic and delicate display with vibrant and saturated colors.

t3-pro-series-english-1_03x

Innovative module

● The innovative design of the module ensures that the viewing angle of the light beads is not affected when rotating the module direction Impact, there will be no color difference. Not only does it improve the visual comfort, but it also enhances the visual effect The attractiveness of fruit.

● The module is hard connected to the box, and the module adopts magnetic suction automatic adsorption, which is reliable and does not fall off.

Product Details

● Integrated power signal quick plug interface reduces internal wiring work in the box, making installation faster.

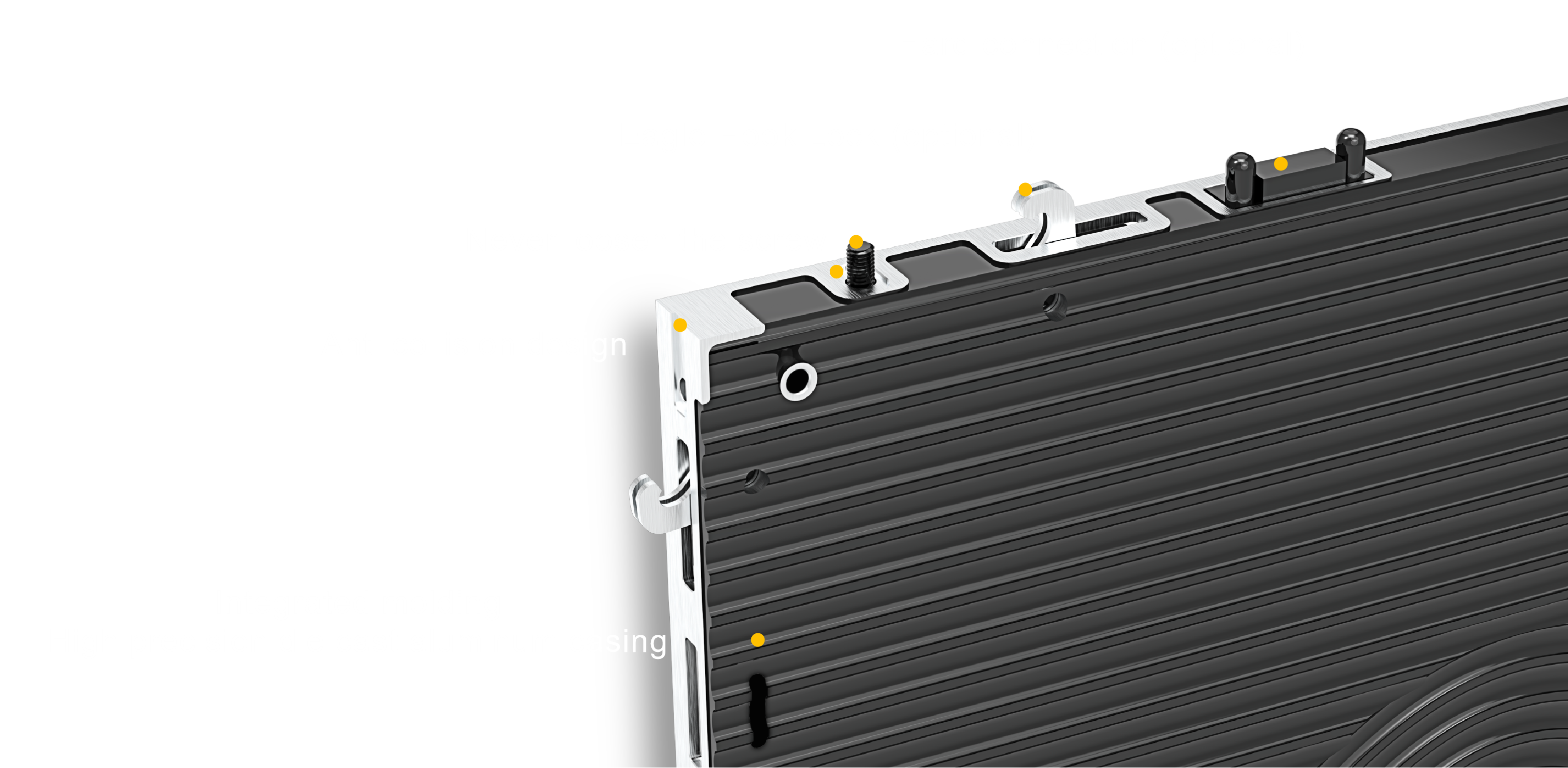

● The box is made of high-precision die-casting material, with integrated molding, positioning columns, eagle hook locks (screws that cannot be loosened), reinforcement ribs and other details designed for higher flatness. Effectively improve installation efficiency and enhance customer experience.

Free splicing, flexible display

The four types of enclosures, 1000X500mm, 1000X250mm, 750X250mm, and 500X250mm, can be flexibly spliced horizontally and vertically, providing unlimited possibilities for your creative ideas and applications in any scene

Creative splicing, infinite imagination

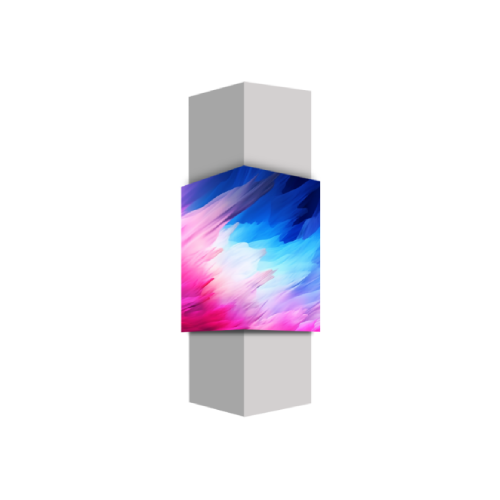

Supports shapes such as right angles and columns to meet various creative splicing needs.

Installation method

Support multiple installation methods such as lifting, wall mounted installation, and column shaped installation, suitable for more scenarios.

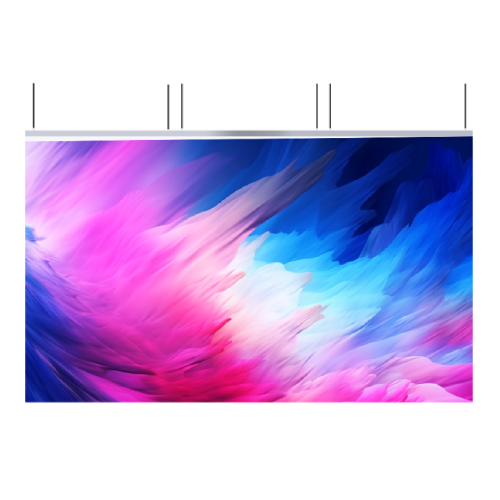

Hanging

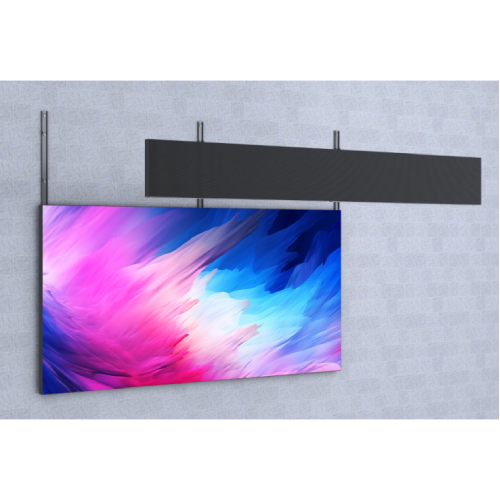

Wall mounting

Variety of shapes

Product Display

1000X500mm

1000X250mm

750X250mm

500X250mm

Pixel Pitch

Pixel Pitch	P0.97	P1.25	P1.56	P1.95	P2.5	P2.604	P2.976	P3.91
LED Type	MIP0606	SMD1010(GOB)	SMD1212(GOB)	SMD1515(GOB)	SMD1515	SMD1515	SMD1515	SMD2020
Physical density(Dot/sqm)	1048576	640000	409600	262144	160000	147456	112896	65536
Module resolution	256×256	200×200	160×160	128×128	100×100	96×96	84×84	64×64
Module dimension(mm)	250×250	250×250	250×250	250×250	250×250	250×250	250×250	250×250
Panel size(mm)	1000×500×33 1000×250×33 750×250×33 500×250×33	1000×500×33 1000×250×33 750×250×33 500×250×33	1000×500×33 1000×250×33 750×250×33 500×250×33	1000×500×33 1000×250×33 750×250×33 500×250×33	1000×500×33 1000×250×33 750×250×33 500×250×33	1000×500×33 1000×250×33 750×250×33 500×250×33	1000×500×33 1000×250×33 750×250×33 500×250×33	1000×500×33 1000×250×33 750×250×33 500×250×33
Module quantity(W×H)	4×2/4×1/3×1/2×1	4×2/4×1/3×1/2×1	4×2/4×1/3×1/2×1	4×2/4×1/3×1/2×1	4×2/4×1/3×1/2×1	4×2/4×1/3×1/2×1	4×2/4×1/3×1/2×1	4×2/4×1/3×1/2×1
Panel resolution	1024×512 1024×256 768×256 512×256	800×400 800×200 600×200 400×200	640×320 640×160 480×160 320×160	512×256 512×128 384×128 256×128	400×200 400×100 300×100 200×100	384×192 384×96 288×96 192×96	336×168 336×84 252×84 168×84	256×128 256×64 192×64 128×64
Maintenance	Front access	Front access	Front access	Front access	Front access	Front access	Front access	Front access
Cabinet material	Die cast aluminum	Die cast aluminum	Die cast aluminum	Die cast aluminum	Die cast aluminum	Die cast aluminum	Die cast aluminum	Die cast aluminum
Single point brightness correction	Have	Have	Have	Have	Have	Have	Have	Have
Brightness(Nits)	600	600	600	800	800	800	800	800
Color temperature(K)	5000‑12000 Optional	5000‑12000 Optional	5000‑12000 Optional	5000‑12000 Optional	5000‑12000 Optional	5000‑12000 Optional	5000‑12000 Optional	5000‑12000 Optional
Viewing angle(V/H)	160°/160°	160°/160°	160°/160°	160°/160°	160°/160°	160°/160°	160°/160°	160°/160°
Brightness/Color uniformity	≥97%	≥97%	≥97%	≥97%	≥97%	≥97%	≥97%	≥97%
Contrast	15000 : 1	15000 : 1	15000 : 1	15000 : 1	15000 : 1	15000 : 1	15000 : 1	15000 : 1
Frame frequency	50/60	50/60	50/60	50/60	50/60	50/60	50/60	50/60
Drive mode	1/64 Scan	1/50 Scan	1/40 Scan	1/32 Scan	1/25 Scan	1/32 Scan	1/28 Scan	1/16 Scan
Gray level	12‑16 Optional	12‑16 Optional	12‑16 Optional	12‑16 Optional	12‑16 Optional	12‑16 Optional	12‑16 Optional	12‑16 Optional
Refresh rate(Hz)	3840‑7680	3840‑7680	3840‑7680	3840‑7680	3840‑7680	3840‑7680	3840‑7680	3840‑7680
Max. power consumption(W/sqm)	350	350	350	350	350	350	350	350
Avg. power consumption(W/sqm)	100‑200	100‑200	100‑200	100‑200	100‑200	100‑200	100‑200	100‑200
Protection level	IP31	IP31	IP31	IP31	IP31	IP31	IP31	IP31
Power input	AC90‑264V,47‑63Hz
Working temperature/humidity(℃/RH)	-20~60℃/10%~85%
Storage temperature/humidity(℃/RH)	-20~60℃/10%~85%
Cert	CCC/CE/RoHS/FCC/CB/TUV/IEC

Scene display

Application scenario:
Advertising brand, landmark brands, street billboards, transportationhubs, shoppingmalls, enterprise and institutions, hotels, hymnasiums, commercial real estate and other indoor and outdoor scenes.

Video Study

Installation video

The cabinet is available in several sizes: 1000*500, 1000*250, 750*250, and 500*250. It features a hard connection (hard-link), comes with a hanging bracket, and requires no structural components.
