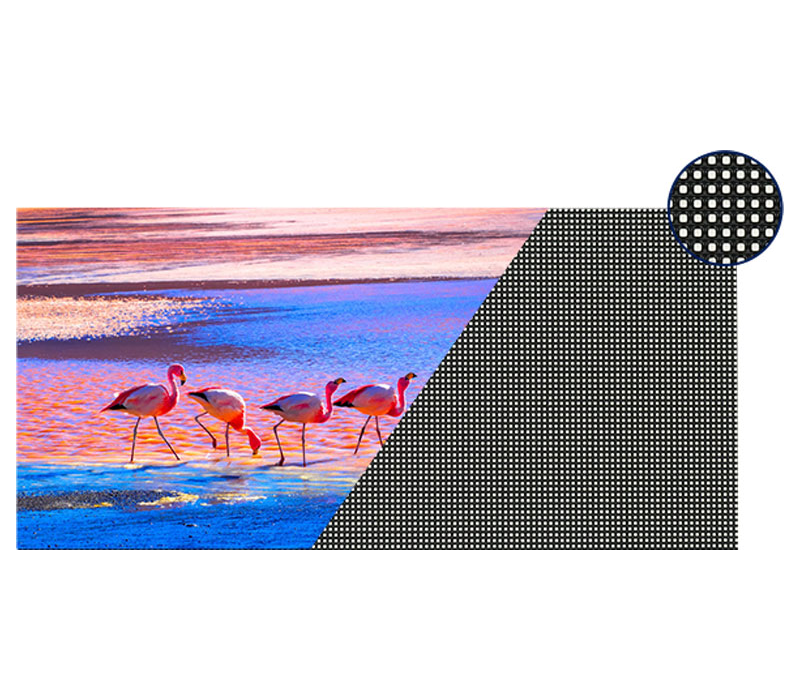

Indoor P1.86 LED Display Module

The P1.86 indoor LED module is a fine-pitch display panel utilized for high-resolution video walls in close-viewing environments like command centers and retail spaces. It features a 1.86 mm pixel pitch and a 320×160 mm panel size, packing 172×86 pixels per module.

Send email to us

Product Detail

Product Tags

Overview

The P1.86 indoor LED module is a fine-pitch display panel utilized for high-resolution video walls in close-viewing environments like command centers and retail spaces. It features a 1.86 mm pixel pitch and a 320x160 mm panel size, packing 172x86 pixels per module.

P1.86 LED module is widely used for TV studios, monitoring rooms, conference rooms, museums, churches, and more where an HD effect is needed.

● Resolution: 14,792dots with 176×86 grid matrix.

● 1.86mm pixel pitch for better visual performance with good Clarity.

● Dimensions: 320mm x 160mm / 12.6” x 6.3”.

● Best for indoor, 160-degree visibility.

● 5V regulated power input.

● 1R1G1B full-color LED screen panel.

● Constant current 1/43 scan.

● 600-1,000 nits brightness.

● Highly stable driver ICs for better color uniformity and vibrant images

● Designed with the latest SMD 1R1G1B encapsulation, offering excellent full color present.

● High contrast ratio of 5000:1 to deliver vibrant colors.

● High refresh rate with over 3840Hz to allow flicker-free

Parameter

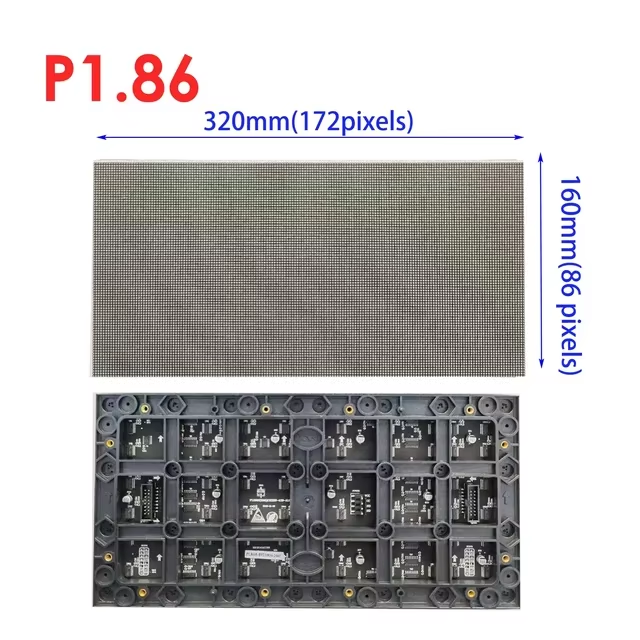

Product Model	P1.86mm Indoor LED Module
Module size	320mmx160mm
resolution ratio	172*86dots
Pixel pitch	1.86 mm
Pixel configuration	RGB 3in1
Driving method	Constant Current Driving,1/43 scan
Working voltage	DC5V
Module maximum power consumption	55W/Pc
Led Lamps	SMD1515 (Black LED)
Electrical Parameters
Frame rate	60Hz/Second
Refresh rate	≥3840HZ
Brightness in White Color (cd/m2):	800-1000 CD/m2
Contrast ratio	≥4000:1
Life time	≥100000 hours
Operating humidity	10%-90%RH
Average power consumption	≤300W/m2 (MAX 700)
Viewing Angle	140(Horizontal),140(Vertical)
Best Viewing Distance	1.8m-18m
Input Voltage	110V/60HZ-220V/50Hz Switchable

LED Display Module Manufacturing and Aging Test

To ensure long-term performance, our LED modules undergo intensive aging tests that simulate years of real-world operation. We subject the modules to extreme conditions — high temperature, high humidity, and continuous high-pressure operation — to rigorously evaluate their stability, reliability, and lifespan.

Critical Test Parameters:

Brightness Stability - Verifies consistent light output without noticeable degradation

Color Preservation - Ensures colors remain vibrant and true without changing

Light Decay - Measured and validated against strict performance benchmarks

Power Supply Stability - Confirms reliable operation at specified voltage/current levels

These extensive tests allow us to identify and resolve potential issues early, ensuring that each module delivers exceptional quality and meets customer expectations.

At Xiaosan, we combine advanced manufacturing equipment with experienced technicians who carefully monitor every production phase — from component selection to final assembly — ensuring superior product quality at every step.

Related Applications

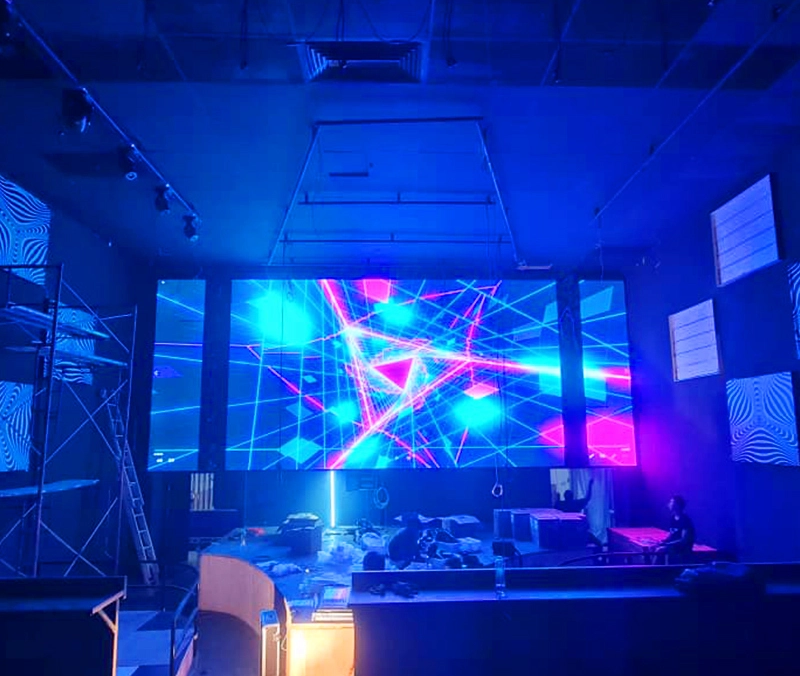

For tv studio

The P1.86 indoor LED display module, with its extremely high pixel density, seamless splicing, and excellent color performance, has become an ideal choice for television studios, virtual production studios, and live sports broadcasts. Using this module in a broadcast television environment typically requires meeting stringent industry standards such as high refresh rates, anti-glare, and low-frequency moiré patterns.

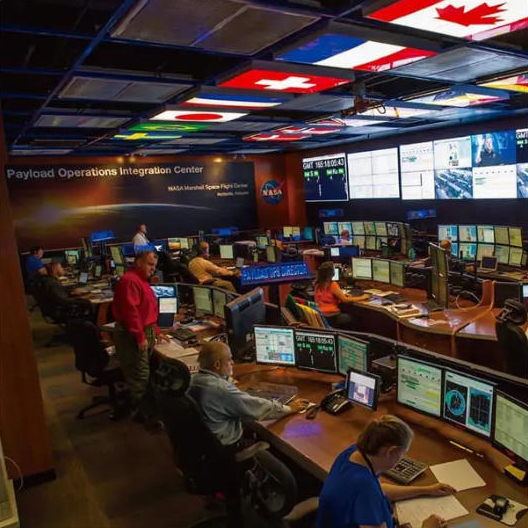

For monitoring rooms

The P1.86 indoor LED display module, with its ultra-high pixel density, seamless splicing, and excellent low-brightness, high-grayscale performance, has become the mainstream large-screen solution for modern monitoring rooms, command centers, dispatch halls, and security monitoring equipment rooms. Monitoring rooms require large screens to operate continuously 24/7 and must clearly capture image details (such as license plates, faces, and tiny characters) in low-light indoor environments.

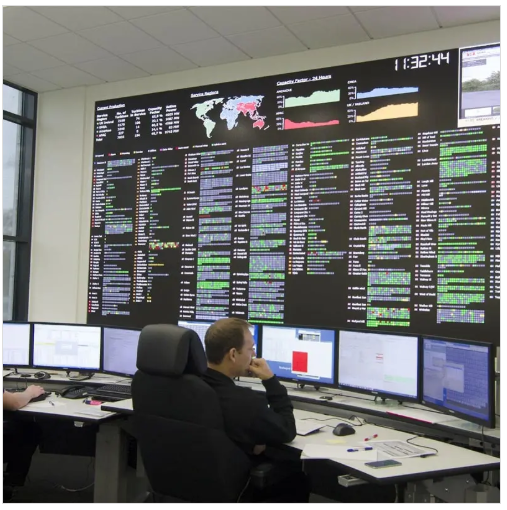

Core Advantages of Monitoring Room Applications

Truly Seamless Splicing, Uninterrupted Image: Compared to traditional LCD splicing screens (where even a 0.88mm bezel can cut off faces, license plates, or map lines), P1.86 LED modules are seamlessly spliced using die-cast aluminum housings, ensuring complete display of multiple monitoring videos and high-precision GIS map vector lines.

Low Power Consumption and Silent Operation: Monitoring room screens are typically located close to operators. Monitoring-grade P1.86 screens employ a fanless, natural heat dissipation design, completely eliminating noise interference. Some high-end solutions utilize a common cathode power supply, reducing power consumption and heat generation by 20%-30%.

Flexible Multi-Window Screen Splicing: Combined with professional video integration platforms (such as Hikvision, Dahua, and audio/video matrix systems) or distributed control systems, P1.86 screens can achieve single-channel image magnification, roaming, cross-screen splicing, and simultaneous display of multiple video signals (CCTV).

Front Maintenance: Featuring a strong magnetic adsorption design, maintenance personnel can remove individual modules from the front of the large screen in seconds using a dedicated electric suction cup. This eliminates the need to disassemble the complex monitoring cables and network racks at the back.

Core Advantages of Monitoring Room Applications

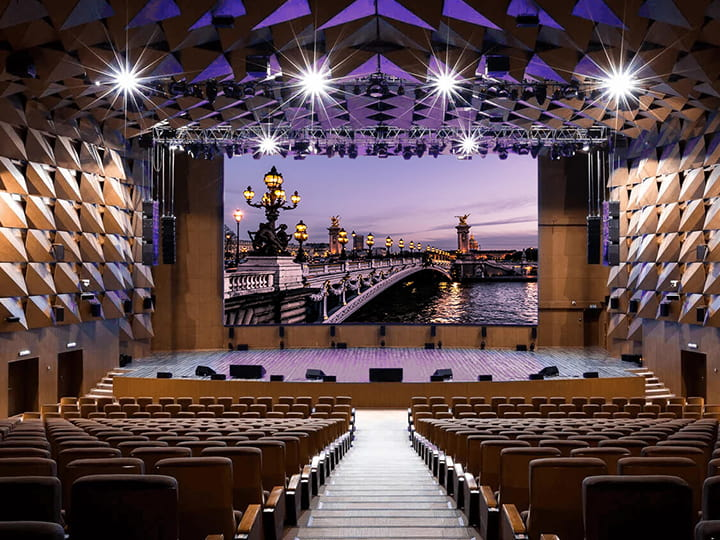

Conference rooms

The P1.86 indoor LED display module, with its extremely high definition, perfect color reproduction, and seamless splicing capabilities, has become the preferred solution for modern enterprises in large conference rooms, multi-functional halls, lecture halls, and executive boardrooms, replacing traditional projectors and LCD video walls. Large screens in conference rooms are primarily used for displaying PPTs, business charts, high-definition videos, and conducting remote video conferences; therefore, extremely high requirements are placed on text clarity, color reproduction, and long-term viewing comfort.

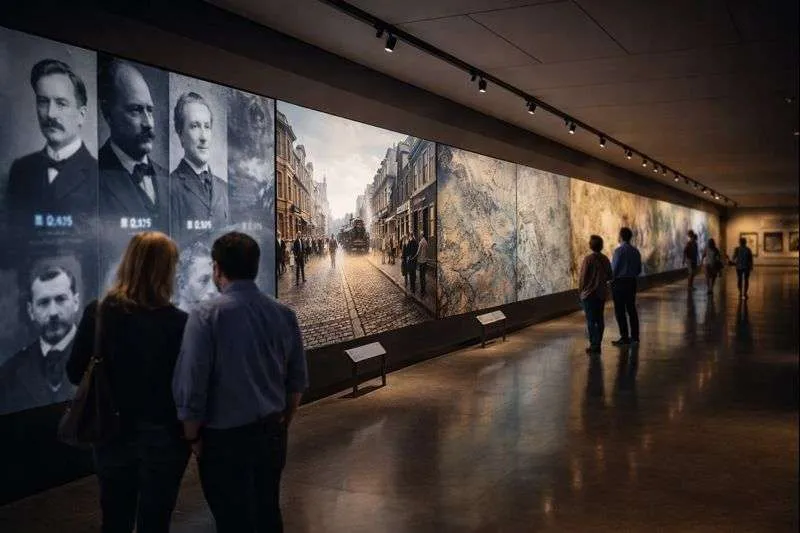

Museums

In cultural and museum exhibition halls such as museums, art galleries, or science and technology museums, the core application goals of P1.86 indoor LED modules are ultimate color reproduction, fine detail for close-up viewing, and immersive interactive digital multimedia.

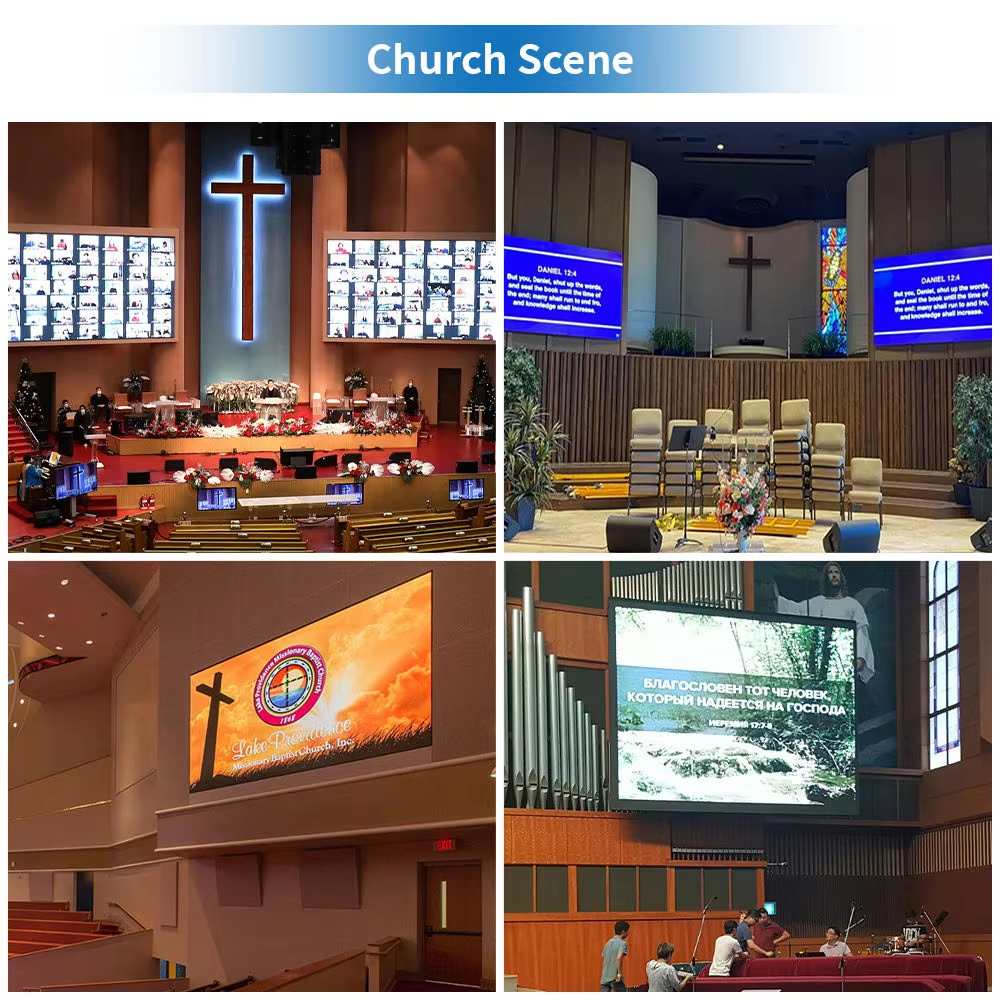

Church

In churches, chapels, and religious gathering places, the P1.86 indoor LED display module has become the mainstream choice to replace traditional projectors and banners. The core requirements of a church environment for a large screen are: extremely clear text (for easy reading of scriptures and lyrics), a full picture even in bright light (to adapt to the lighting of large church windows), and an overall visual impact when viewed from a distance.

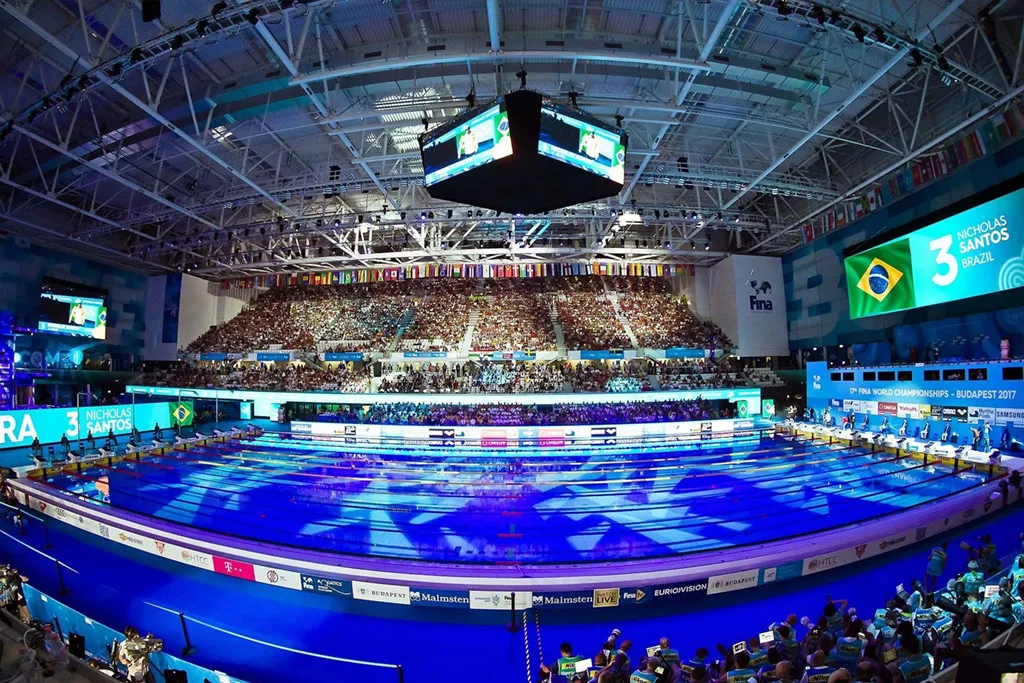

Sports Event

When applying P1.86 indoor LED modules to sporting events (such as indoor stadiums, e-sports venues, gym live broadcasts, and stadium press conference rooms), the core requirements are quite different from those of ordinary conference rooms. Sporting events are full of fast-moving images and frequent media camera shooting, thus placing extremely high demands on the screen's refresh rate, response speed, image smoothness, and protection performance.
