p2 indoor led module

A P2 indoor LED display is a high-resolution video wall system featuring a 2.0 mm distance between pixels (pixel pitch). It strikes a cost-effective balance between ultra-fine pitches (like P1.25 or P1.86) and larger formats (like P2.5 or P3). It delivers a pixel density of 250,000 dots per square meter, ensuring pixel-free viewing at a distance of 2 meters (approx. 6.5 feet) or more.

Send email to us

Product Detail

Product Tags

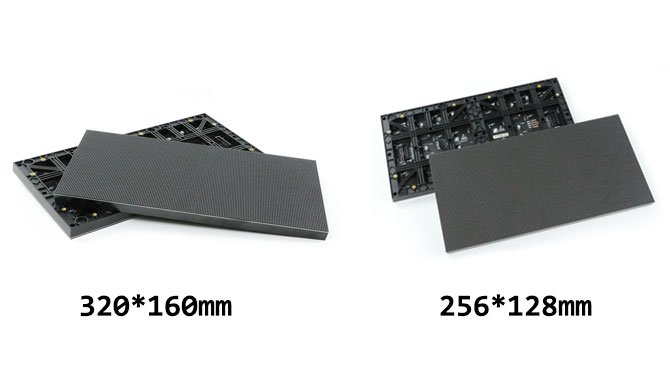

Module Sizes & Resolutions:

• 320 mm × 160 mm module size yields a resolution of 160 × 80 pixels per panel.

• 256 mm × 128 mm module size yields a resolution of 128 × 64 pixels per panel

Features

• Resolution: 12,800dots with 160×80 grid matrix. 8,192dots with 128×64 grid matrix.

• 2mm pixel pitch for better visual performance with good Clarity

• Dimensions: 320mm x 160mm / 12.6” x 6.3” or 256mm x 128mm / 10.1” x 5.0”

• Best for indoor, 160-degree visibility

• 5V regulated power input

• 1R1G1B full-color LED screen panel

• Constant current 1/32, 1/40 scan

• 600-1,000 nits brightness.

• Highly stable driver ICs for better color uniformity and vibrant images

• Designed with the latest SMD 1R1G1B encapsulation, offering excellent full color present.

• High contrast ratio of 5000:1 to deliver vibrant colors.

• High refresh rate with over 1920hz to 3840Hz to allow flicker-free

Specification

Product Model	P2mm-Indoor
Pixel Pitch	2mm
Panel Dimension	320(W)x160mm(H) 256(W)x128mm(H)
Pixel Resolution	160×80 dot 128×64 dot
Pixel Configuration	1R1G1B
LED specification	SMD 3in1
Scan Rate	Constant current 1/32 scan or 1/40
Hor. viewing angle	160°
Vert. viewing angle	160°
Best View Distance	2m – 20m
Grey Level	14 bits
Brightness	600 – 1000 cd/㎡
Brightness Adjustment	100-grade auto/manual-adjustment
Brightness Uniformity	>99%
Input Voltage (AC)	DC5V
Avg Power Consumption	250 W/m²
Max Power Consumption	580 W/m²
Operation Power Voltage	100-240V / 50-60Hz
Control System	DVI card + Full color control card
Control Mode	Synchronous & asynchronous available
Support Input	VGA, Video, AVI, MOV, MPG, DAT, VOB etc.
Communication Options	Wire Ethernet, Fiber Ethernet, RF wireless, GPRS
Frame Frequency	>60 Hz
Refresh Frequency	>600 Hz(adjustable)
Color Temperature	3500-9500 adjustable
Control Distance	Ethernet cable 100m, optical fiber 5km
Lifetime	>=100000 hours
Blind Spot Rate	<0.00001
Working Temp	(-20)-(+60) Celsius degree
Working Humidity	10%-90%
Waterproof Rating (Front/Rear)	IP65/IP54
Package Type	Carton/Wooden case/Flight case

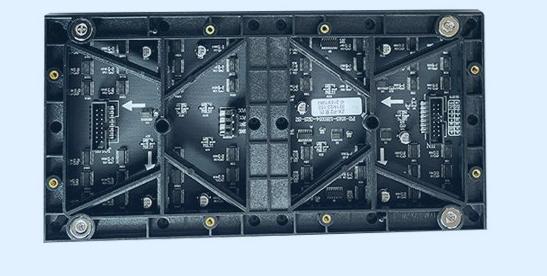

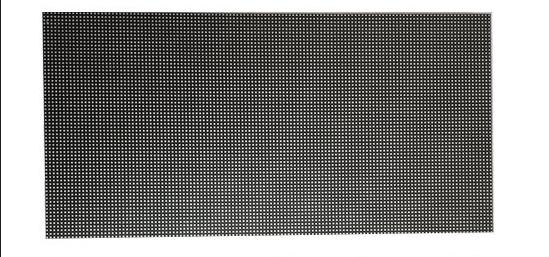

P2 indoor led module front side and back side

To ensure long-term performance, our LED modules undergo intensive aging tests that simulate years of real-world operation. We subject the modules to extreme conditions — high temperature, high humidity, and continuous high-pressure operation — to rigorously evaluate their stability, reliability, and lifespan.

Critical Test Parameters:

Brightness Stability - Verifies consistent light output without noticeable degradation

Color Preservation - Ensures colors remain vibrant and true without changing

Light Decay - Measured and validated against strict performance benchmarks

Power Supply Stability - Confirms reliable operation at specified voltage/current levels

These extensive tests allow us to identify and resolve potential issues early, ensuring that each module delivers exceptional quality and meets customer expectations.

At Xiaosan, we combine advanced manufacturing equipment with experienced technicians who carefully monitor every production phase — from component selection to final assembly — ensuring superior product quality at every step.

LED Display Module Manufacturing and Aging Test

Related Applications

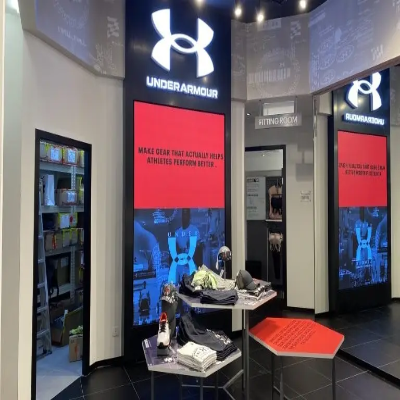

Retail Advertising

· P2 Indoor LED Display (Vertical Screen) at Under Armour Pavilion KL.
· Act as an in-store display.
· Grab visitor attention and improve customer engagement.

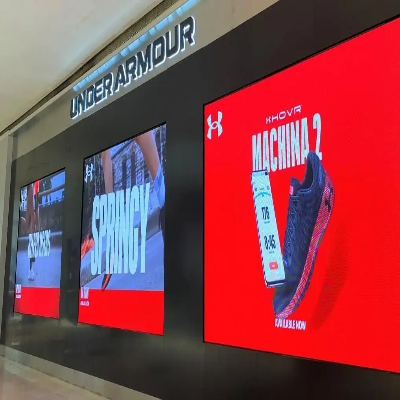

For Shopping Mall

· P2.0 indoor LED display is one of the most suitable displays for various indoor applications.
· Improve visitor and customer engagement.
· Display property information and introduction video.

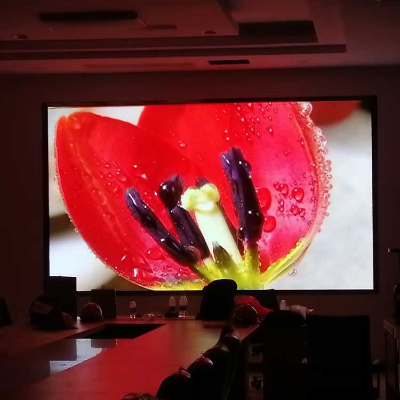

For Meeting room

Why P2.0 for Meeting Rooms?

· Ideal Viewing Distance: Perfectly optimized for participants sitting 2 to 5 meters away, delivering seamless 1080p to 4K resolution on walls larger than 110 inches.

· Brightness & Clarity: Indoor SMD LEDs provide 600 to 1,200 nits of brightness, allowing you to keep the lights on during presentations unlike traditional projectors.

· Seamless Splicing: Modules are assembled to create a true, bezel-free video wall, creating a clean, modern corporate environment.

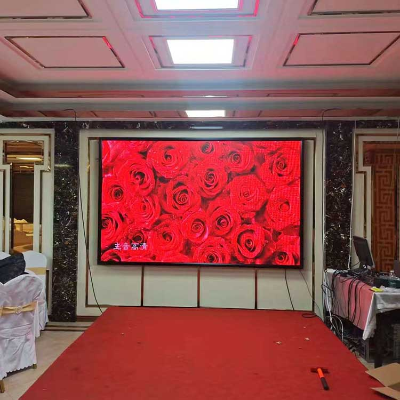

For stage background

A P2 indoor LED display provides exceptional performance for stage backgrounds due to its ultra-fine 2mm pixel pitch.

· High Pixel Density

250,000 pixels/m² delivers crisp text and ultra-high-definition imagery.
Captivates audience members sitting as close as 2 meters from the stage.

· Camera-Ready Performance

3,840Hz refresh rate eliminates visible scan lines and flickering during live broadcasts.
Perfect for professional TV recording, live streams, and high-end corporate events.

· Visual Precision

Seamless modular tiles create massive, uninterrupted backdrop screens without distracting bezels.
High contrast ratios ensure deep blacks and vivid colors under heavy stage lighting.

· Operational Efficiency

Die-cast aluminum cabinets offer a lightweight design for fast hanging and stacking.
Front-service access enables technicians to swap modules in seconds during live shows.
